Zeus2 DG
Transmitters

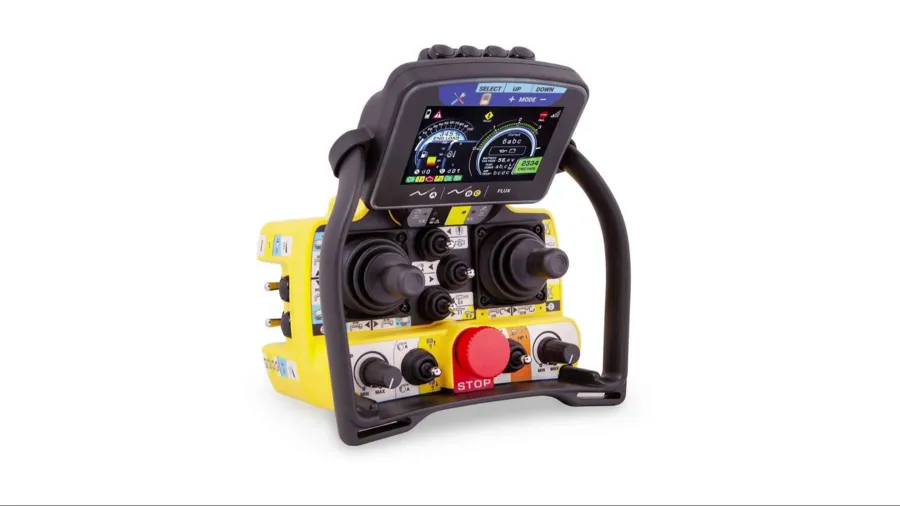

A mix of reliability and versatility combined in a single control station, the ZEUS2 DG is the synthesis of the best ergonomic and functional features. The compact size of the panel, having well rationalized spaces, make it an easily customizable transmitter according to specific needs. It’s suitable for applications that require up to 6 monoaxial joysticks or 2 biaxial joysticks, it is a synthesis of technology that will allow you to master your machines and systems. The possibility to choose between potentiometers, buttons, selectors and rotary switches is the ideal solution for the management of movements in special applications, in construction, cranes, cleaning machines, multifunctional hydraulic cranes, just to mention a few. The KAPTA function is available.
This version has a 4.3-inch graphic color display, adjustable in brightness. It can be easily programmed and configured even directly by the customer, using the know-how provided by IMET.
Need parts for your Zeus2 DG? Batteries, chargers, pouches, joysticks and spare transmitters are available from the RCP online shop.
Find parts
Fields of Application
Tower Cranes
Overhead Cranes
Vacuum Trucks
Hydraulic Cranes
Ship & Marine Cranes
Forestry Machinery
Excavators
Harvesting
Other
Prototyping and series production
IMET supports Manufacturers and System Integrators in the customizations of the product, based on the needs of their application. IMET makes prototypes and pre-series.
Once the specifications are defined, the customer plans the supplies.
The technology and installations on which IMET has invested allow a large and diversified production capacity, thus ensuring product repeatability in times that are appropriate to customer needs.
Programming and diagnostics
Through a dedicated software, certain parameters can be changed in the system. The programming tool acts as an interface to a PC. This device allows the reading of any diagnostic information about the system.
Biaxial Joystick
Thanks to the optical reading technology conceived by IMET, our biaxial joysticks guarantee the operation surgical precision and a tactile control feeling of the objects being moved.
Tested for 15,000,000 maneuvers and equipped with a travel angle of up to +/-40deg. Protection UMFS up to PL d Cat.3
The range covers every need: stepless proportional joysticks, step joysticks, interlocked axes, with button of various colors.
Total configurability
The CNC drilling of the boxes and the multi-colored digital printing and cutting of the panels are realized internally. Together with an extremely dynamic Technical Office, IMET can meet the most varied needs of manufacturers.
The positioning of the components and the symbology are fully customizable.
Harsh environments
The remote controls are designed and built to be used in the most demanding environments.
In order to ensure the durability, the products are testing internally with instrumentation and systems that check infiltration, aging, salt spray, UV, fire; only to mention some.
4.3" Color Display
4.3" graphic color display, 65,000 colors and 800-nit brightness.
It allows a neat and clear display of information even in environments with intense sunlight.
It is easily programmable and upgradeable by the customer via USB by means of a dedicated software.
If you’d like more information on system features, get in touch today.
